CO2 laser date coding machine is a dynamic laser coding system specially designed for packaging industry. With this laser date coding machine, you can print logos, date, barcode on the soft drink bottles, cosmetic bottle both for glass and plastic. It is suitable of delivering clear, accurate, continuous, permanent signs to the high speed moving objects quickly and easily, greatly improves working efficiency.

Parameter

Machine Model:ZS-LMC1
Voltage:220V/110V 50-60Hz
Power:30W
Working Speed:PVC tubes: 40 m/min
PET bottles: 20000 bottles/h
Coated cartons: 35 m/min
Marking Area:70*70/90*90/110*110/140*140mm
Marking Depth:3mm(depending on materials)
Repeat Frequency:20-200Hz
Cooling Method:Air Cooling
Machine Weight:About 110kg
Machine Size:About 1430*565*930mm
Gross Weight:About 118kg
Package Size:About 1680*520*690mm

Designed with PLC control panel, it is convenient to set working parameters. Language of panel can be customized.

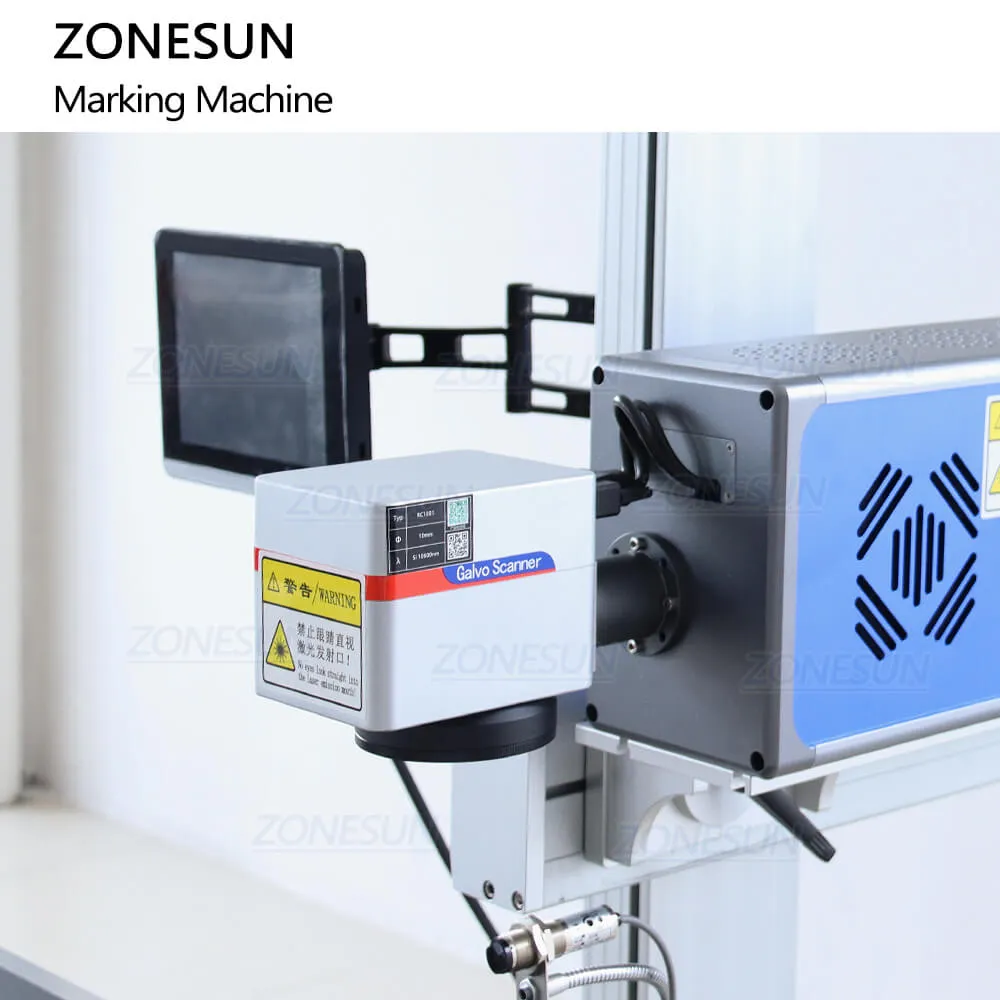

Designed with optical scanner and servo controlled, it has feature of large scanning angle, large load and high working speed. With the way of red light positioning, it can mark products accurately.

Designed with optical scanner and servo controlled, it has feature of large scanning angle, large load and high working speed. With the way of red light positioning, it can mark products accurately.

With high-quality conveyor belt, it can transport products steadily. The conveying speed can be adjusted as needed.
